224-201
2.5MM 24A 2 CONDUCTOR LARGE LIGHTING

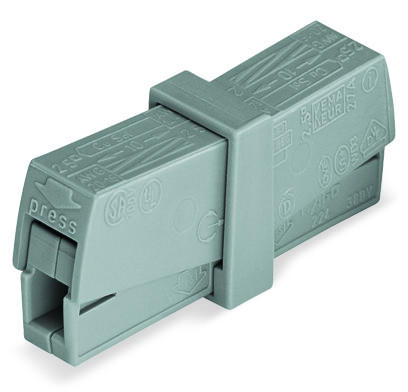

Wago 224-201 Lighting Connector
0.5mm - 2.5mm - 2 Conductor
Lighting connector standard type continuous service temperature 105°c
Due to their testing and approval as isolated Compact Connectors per VDE 0606, the lighting connectors of the Series 224 can be used in applications where a connection between solid and flexible conductors is required.
Connect: 3 Cables
2 x Solid - [mm²] 1.0 - 2.5 mm²
1 x Flexible - [mm²] 0.5 - 2.5 mm²
Voltage: 240/440v
Height: 15.5 mm
Width: 8.5 mm
Depth: 42 mm
Strip length: - 9 mm -11mm
Current: 24 A
